For ultra-fast crystal orientation, crystal alignment in production, quality control, rocking curve measurements, material research and more
Si | SiC | AlN | GaAs | Quartz | LiNbO3 | BBO and 100 more materials
Established Omega-scan method
Measurement speed: < 5 secs/sample
Easy integration into process line
MES and/or SECS/GEM interfaces
Typical standard deviation tilt (example: Si 100): < 0.003 °, minimum < 0.001 °

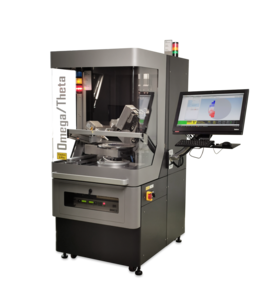

The Omega/Theta X-ray diffractometer is a fully automated vertical three axes diffractometer for orientation determination for various crystals using Omega-Scan and Theta-Scan methods and rocking curve measurements. The large and spacious design can accommodate samples and sample holders up to 450 mm in length and up to 30 kg weight.
All measurements are automated and can be accessed from the user-friendly software interface. Using the Omega Scan, the complete lattice orientation can be determined in one crystal rotation (5 seconds). The Theta Scan is more flexible, but results only in one orientation component per scan.
The tilt angle can be determined with very high precision; up to 0.001° using the Theta Scan. For all other crystal directions, the precision depends on the angular difference to the perpendicular surface.
The system is modular and has been equipped with many different extensions for special purposes like shape or flat determination, mapping and diverse sample holders. The sample tilt is detected by an optical measurement, and can be used to correct the resulting orientation.
Laser scanner for sample shape measurement
Photographic camera and image processing for flat and notch detection

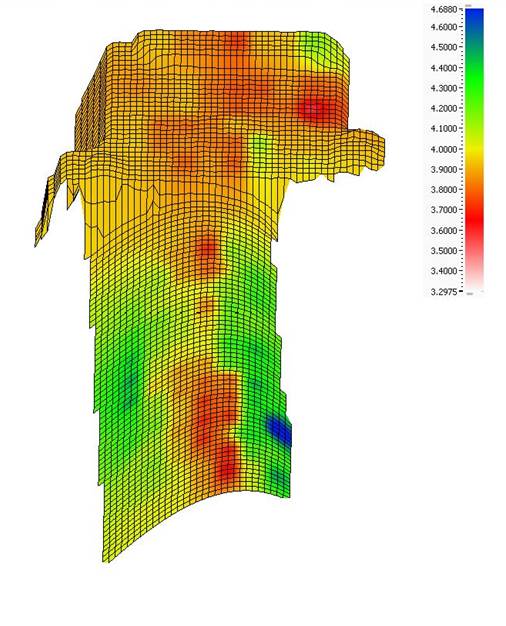

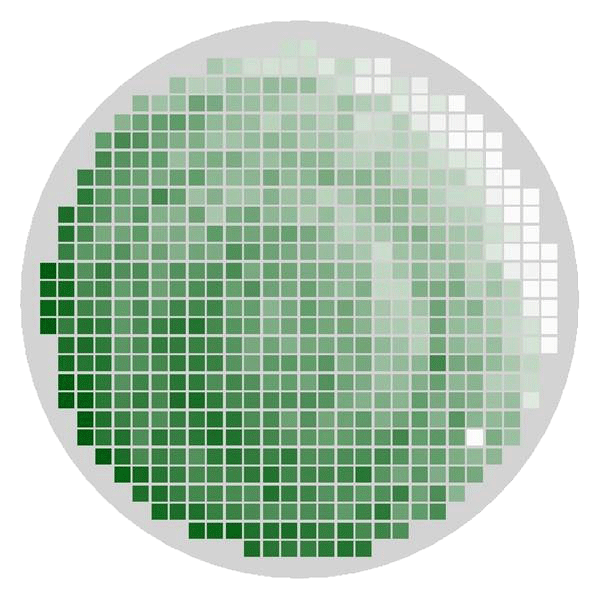

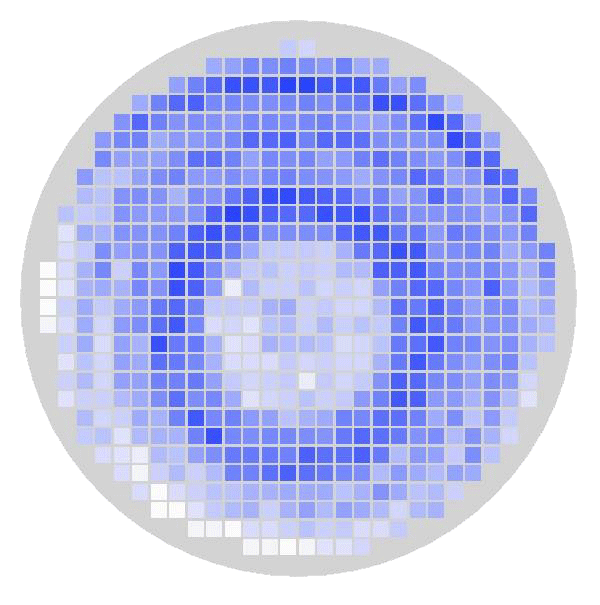

Additional sample rotation axis for 3D mapping
Secondary channel-cut collimator (analyzer)
Equipment for sample adjustment
Single crystal diffractometer
Fully automated complete lattice orientation measurement of single crystals
Ultra-fast crystal orientation measurement using Omega-scan method
Automated rocking-curve measurement
Angular resolution of the diffractometer: 0.1 arc sec.
Sample size up to 450 mm
Appropriate for production quality control and research
User friendly and cost effective
Convenient sample handling and easy to operate
Advanced, user-friendly software
Low energy consumption and operating costs
Modular design and flexibility
Various upgrade options
Customization to the users' requirements
