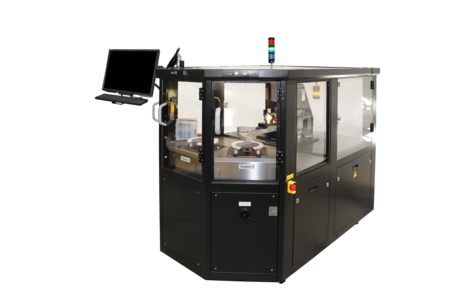

Wafer XRD

For fully automated sorting, crystal orientation, optical notch and flat determination and more

Si | SiC | AlN | Sapphire (Al2O3) | GaAs | Quartz | LiNbO3 | BBO and 100 more materials

Features of Wafer XRD

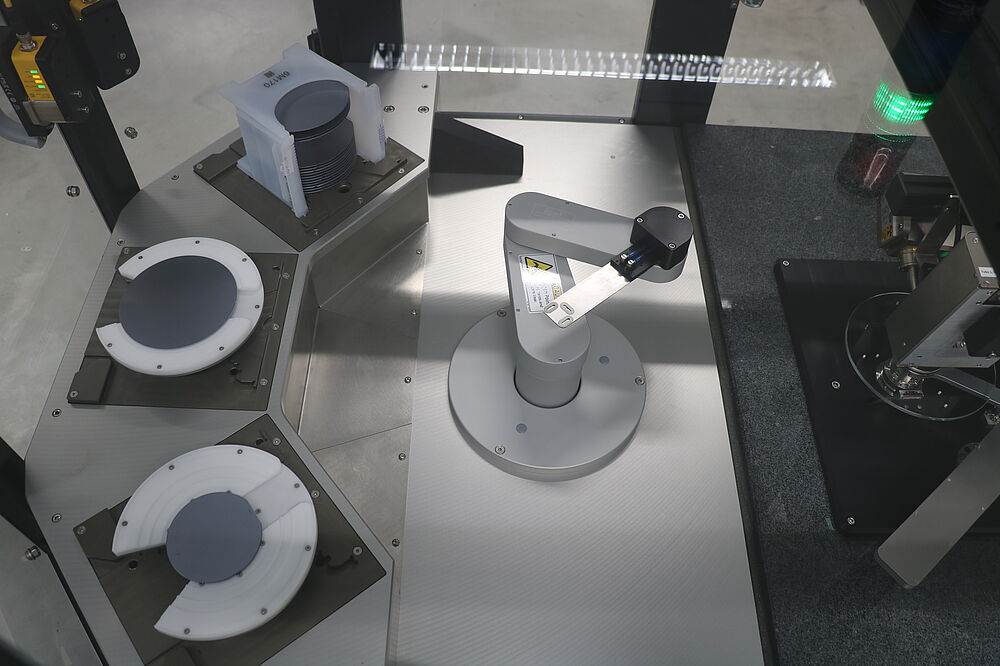

• Fully automated wafer handling and sorting system (eg: cassette to cassette)

• Crystal orientation and resistivity measurements

• Optical determination of geometric features (notch position, notch deep, notch opening angle, diameter, flat position and flat length) of wafers

• Distance measurement for unpolished wafers and mirroring surfaces

• MES and/or SECS/GEM interfaces

Established Omega-scan method

• Highest precision

• Measurement speed: < 5 secs/sample

• Easy integration into process line

• Typical standard deviation tilt (example: Si 100):   < 0.003 °, minimum < 0.001 °
