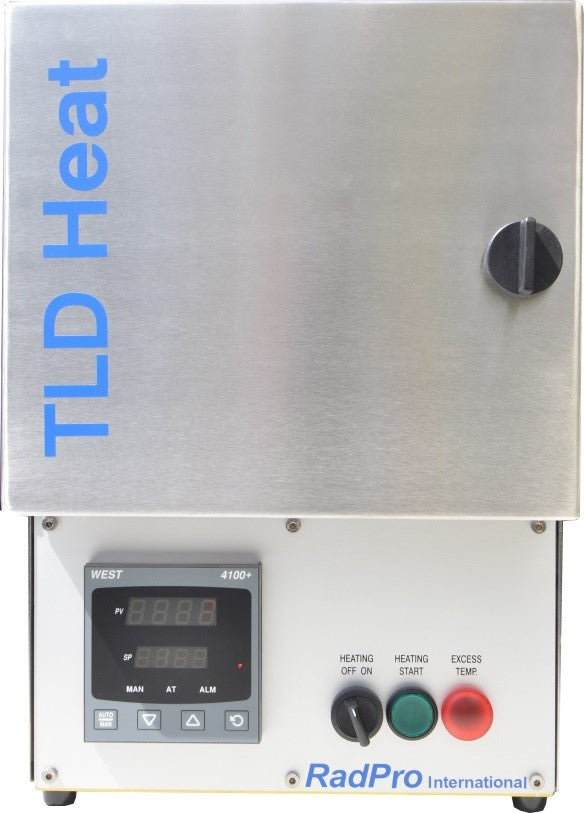

TLD Heat

Key Features

• Temperature Uniformity: The stainless-steel heating chamber with horizontal air circulation provides excellent temperature uniformity and supports reproducible heating and cooling cycles that help maintain consistent TLD sensitivity and low background readings.
• Flexible TLD Compatibility: Suitable for annealing typical TLD elements, including chips, discs, and rods.
• Programmable Heating Profiles: Windows-based Thermosoft software allows users to create, save, and manage programmable heating profiles for annealing and preheating procedures.
• Rapid Cooling: An external aluminum cooling block enables rapid cooling of the annealing trays following a heating cycle.
• Complete System: Supplied with a stainless-steel annealing tray, handling tool, aluminum cooling block, Thermosoft software, and RS485-to-USB adapter with cable.
• PC Connectivity: USB PC interface for operation and programming with Windows-based Thermosoft software.
• High-Temperature Performance: Supports temperatures up to 400°C with controller accuracy of ±1 K.
• Durable Construction: Constructed with a stainless-steel housing and chamber and insulated with ceramic fiber.

• Maximum Temperature: 400°C
• Temperature Control: ±1 K
• Maximum Heating Rate: ca. 25 K/min
• Maximum Cooling Rate: ca. 20 K/min
• Capacity per Cycle: 3 annealing trays
• PC Interface: USB
• Heating Profiles: Freely programmable by oven software
• Power Supply: 115 V or 230 V
• Power Consumption: 1.5 kW
• Chamber Size: 95 × 90 × 105 mm (H × D × W)
• Dimensions: 430 mm × 410 mm × 300 mm (H × D × W)
• Weight: Approx. 22 kg net, 35 kg gross

Annealing and Cooling Workflow

TLD Heat is designed for thermoluminescent dosimetry workflows, supporting annealing before irradiation and preheating after irradiation prior to readout. Programmable heating profiles, temperature-uniform air circulation, and rapid cooling with the external aluminum cooling block support reproducible thermal processing of TLD materials.

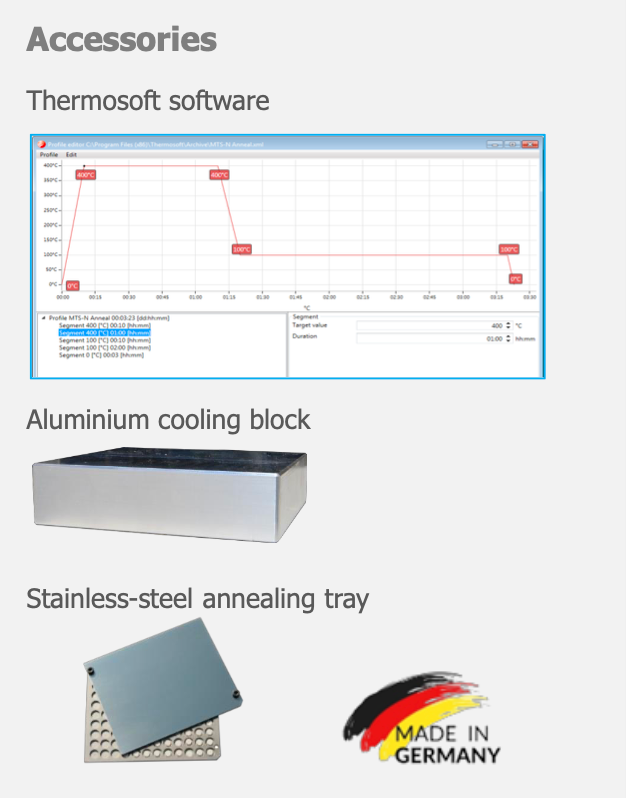

Included Accessories

• Thermosoft software
• RS485-to-USB adapter with cable
• Stainless-steel annealing tray with handling tool
• Aluminum cooling bloc
