myOSLchip

Name: myOSLchip
Brand: Rotunda Scientific

An announcement from LANDAUER has stated that the microSTARii® Medical Dosimetry System and nanoDot™ products are no longer available for purchase. The myOSLchip is a new generation replacement product for the microSTARii®. Contact us to learn more!

Description

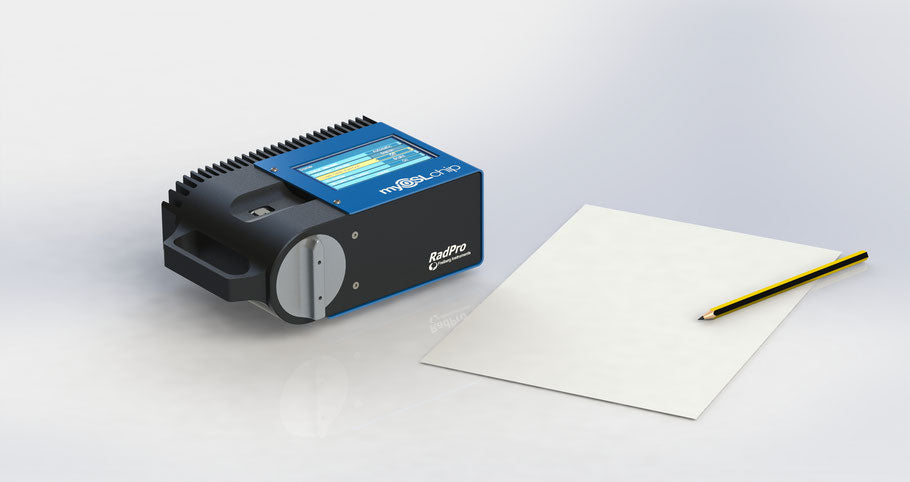

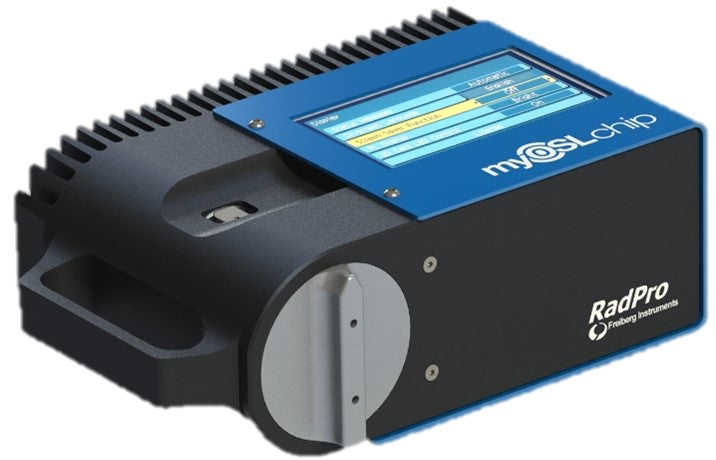

Manual OSL reader for encapsulated detectors

myOSLchip is a handheld OSL reader which can be used to read and erase its compatible dosimeters (myOSLchip dosimeter). The myOSLchip is operated via PC. But it is also equipped with a touch display, which allows autonomous operation without a PC connection for basic applications. Measurement data can be exported to a PC. Internal Data Matrix scanner identifies the individual number of the myOSLchip dosimeters.

The dosimeters can be used for dosimetry applications, QC of radiation therapy devices, dose measurement in electronic industries, research, and other applications in dose measurement.

Technical Specifications — myOSLchip Reader

Parameter	Specification
OSL stimulation	Blue light (480 nm)
Erasing unit	Bleaching LED for low doses
User interface	Mini USB or Ethernet
Dimensions	Approx. 23.5 × 14.6 × 9 cm
Weight	Approx. 5 kg
Power supply	100–240 VDC, 50/60 Hz (external power supply)

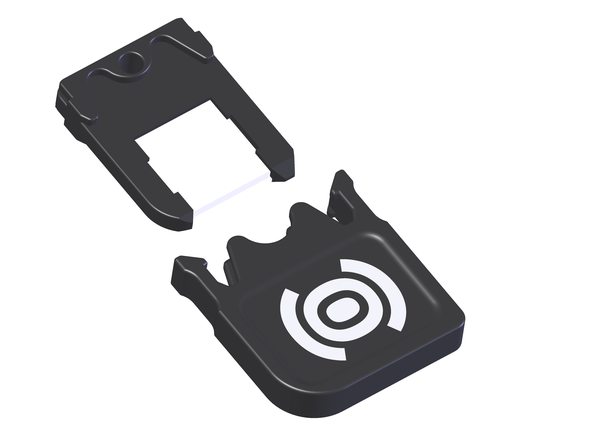

Technical Specifications — myOSLchip Dosimeter

Parameter	Specification
OSL material	BeO
Dose range	0.05 mGy – 10 Gy
Dose linearity	Up to 10 Gy
Energy response	16 keV to several MeV
Identification	Individual Data Matrix code and readable number
Dimensions	Approx. 0.95 × 1.00 × 0.20 cm
Weight	Approx. 0.2 g

Dosimetric Performance — myOSLchip System

Parameter	Performance
Accuracy	±5%
Precision	5%
Repeatability	1%
Low limit of detection (LLD)	50 µGy
