Compact, Versatile Tabletop Irradiator

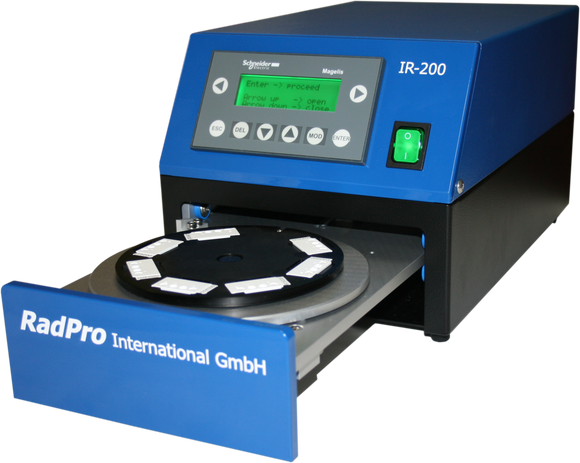

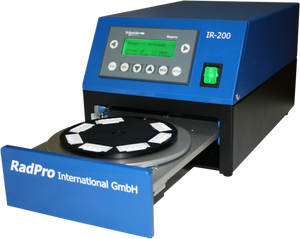

The IR-200 is a compact, multi-purpose tabletop irradiation system used for calibration of TLD and OSL elements and cards. An integrated 33 MBq (0.9 mCi) ⁹⁰Sr/⁹⁰Y source provides approximately 0.3 mGy equivalent gamma dose per carrier disc revolution.

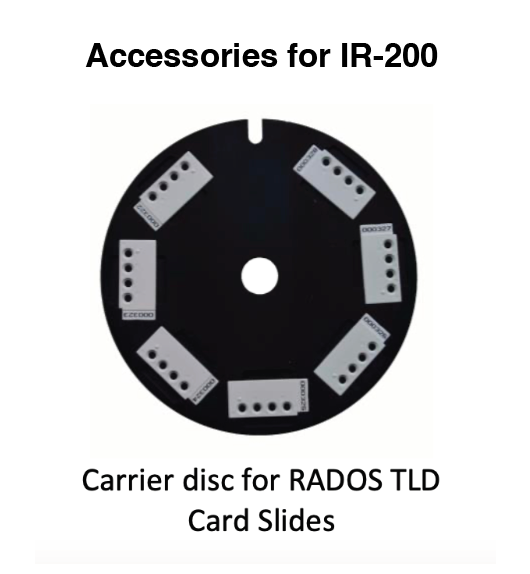

An automatic drawer and interchangeable carrier discs accommodate a variety of TLD and OSL elements and cards. Available carrier discs support up to 50 TLD chips, discs, or rods; 6 Harshaw TLD cards; 7 Rados TLD slides; 6 Panasonic TLD cards; 6 Landauer OSL cards; 7 myOSL 2.0 dosimeters; or 21 myOSLchip dosimeters. The irradiation value is defined by the number of carrier disc revolutions.

Features

Key Features

  • Compact design: Tabletop design with a small footprint (220 × 195 × 350 mm).
  • Automatic drawer system:  Provides access to the turntable for loading and unloading interchangeable carrier discs.
  • Versatile dosimeter compatibility: Carrier discs are available for TLD chips, discs and rods, as well as Harshaw, Rados, Panasonic, Landauer, myOSL 2.0 and myOSLchip dosimeters.
  • Dose per revolution: Approximately 0.3 mGy equivalent gamma dose per carrier disc revolution.
  • Adjustable irradiation: rradiation value is defined by the number of carrier disc revolutions, with up to 500 revolutions at approximately 2 revolutions per minute.

Included Components

  • IR-200 tabletop irradiator
  • Built-in ⁹⁰Sr/⁹⁰Y source (unless ordered without source)
  • Carrier disc as ordered (customized carrier discs are available on request)
  • Mains cable
  • User manual
  • Calibration certificate (if ordered)
Specifications
Specification Details
Source ⁹⁰Sr/⁹⁰Y
Nominal Source Activity 33 MBq (0.9 mCi)
Dose / Revolution ca. ~0.3 mGy equivalent gamma dose
Capacity Up to 50 TLD elements; capacity varies by carrier disc for TLD/OSL cards and dosimeters
Rotation Speed ca. ~2 revolutions/min
Max Revolutions 500
Reproducibility <2%
Surface Dose Rate <5 µSv/h
Voltage 85–264V / 47–440Hz
Dimensions (WxHxD) 220 × 195 × 350 mm (device), 460 × 460 × 500 mm (packed)
Weight ~9.5 kg (device), ~15 kg (packed)
Product Downloads
Product Brochure
Additional Information

Regulatory Notice

This product contains a radioactive ⁹⁰Sr/⁹⁰Y source and requires a license to handle radioactive material. Please verify applicable local regulatory requirements before purchasing.
