ScanAround - Extremity DXTRAD Barcode Scanner



The ScanAround circular reader is designed to read the barcode on a Harshaw TLD DXTRAD extremity dosimeter where the dosimeter is either behind the lens in the ring / holder or as a discrete dosimeter.

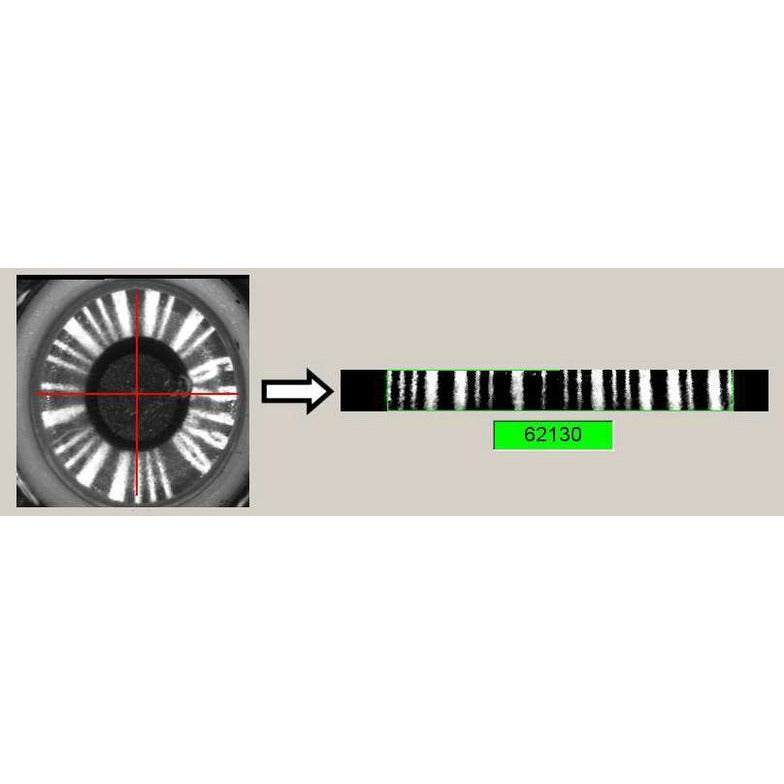

A CCD camera is used to obtain an image of the dosimeter from which the barcode is extracted.  The system works in conjunction with a PC where the image is processed and the on-screen display shows the result. Output of the barcode may be via a file or through a keyboard wedge into your application program as if you were typing the value directly.



Specification

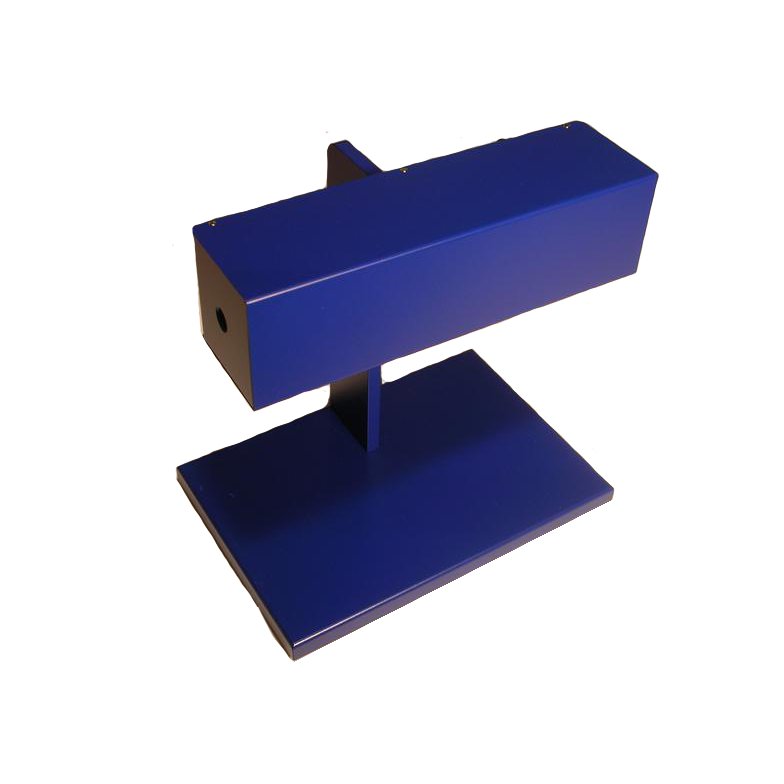

    • Desktop Unit: ~220mmW x ~210mmH x  ~145mmD
    • Weight: 1.74Kg ( 3.8lb)
    • Vertical or horizontal mount adjustable to suit user
    • Video Out: Monochrome CCIR 75 BNC
    • RS232 out: 9600 baud, no parity, 8 bit, 1 stop bit
    • Power: 12VDC 250mA; Input:100-240VAC 50/60Hz

PC Requirements

(Sold Separately)
    • Desktop or Laptop – Windows XP preferred
    • Screen resolution 1024 x 768
    • USB Inputs: Requires two, one of which must be USB2.0 (for video input) & Security Dongle
    • RS232 output (optional) / LAN access (optional)
